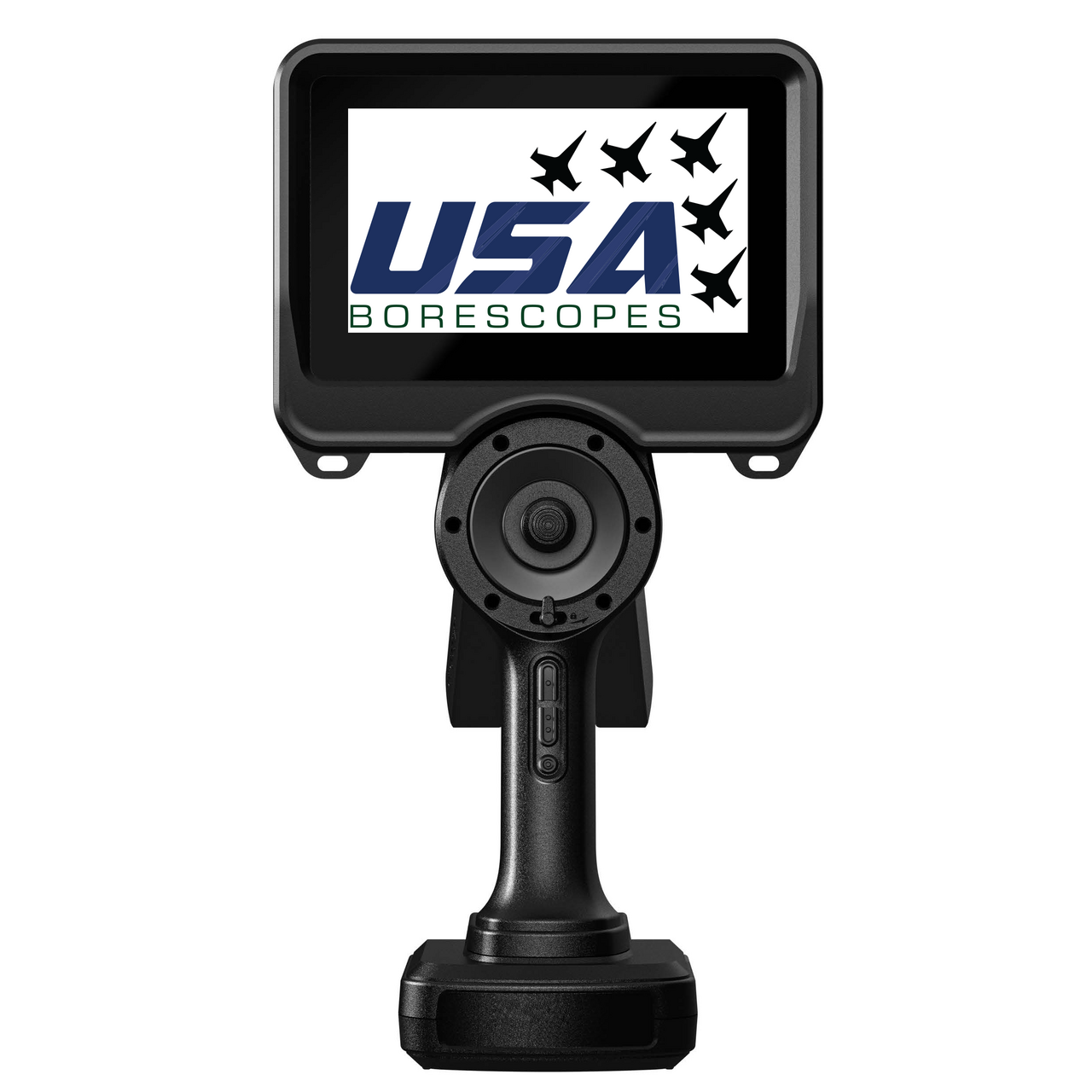

USA3000J-6 – Joystick Articulation – 6mm Dual View 3D Measuring Videoscope

USA3000J-6 Series

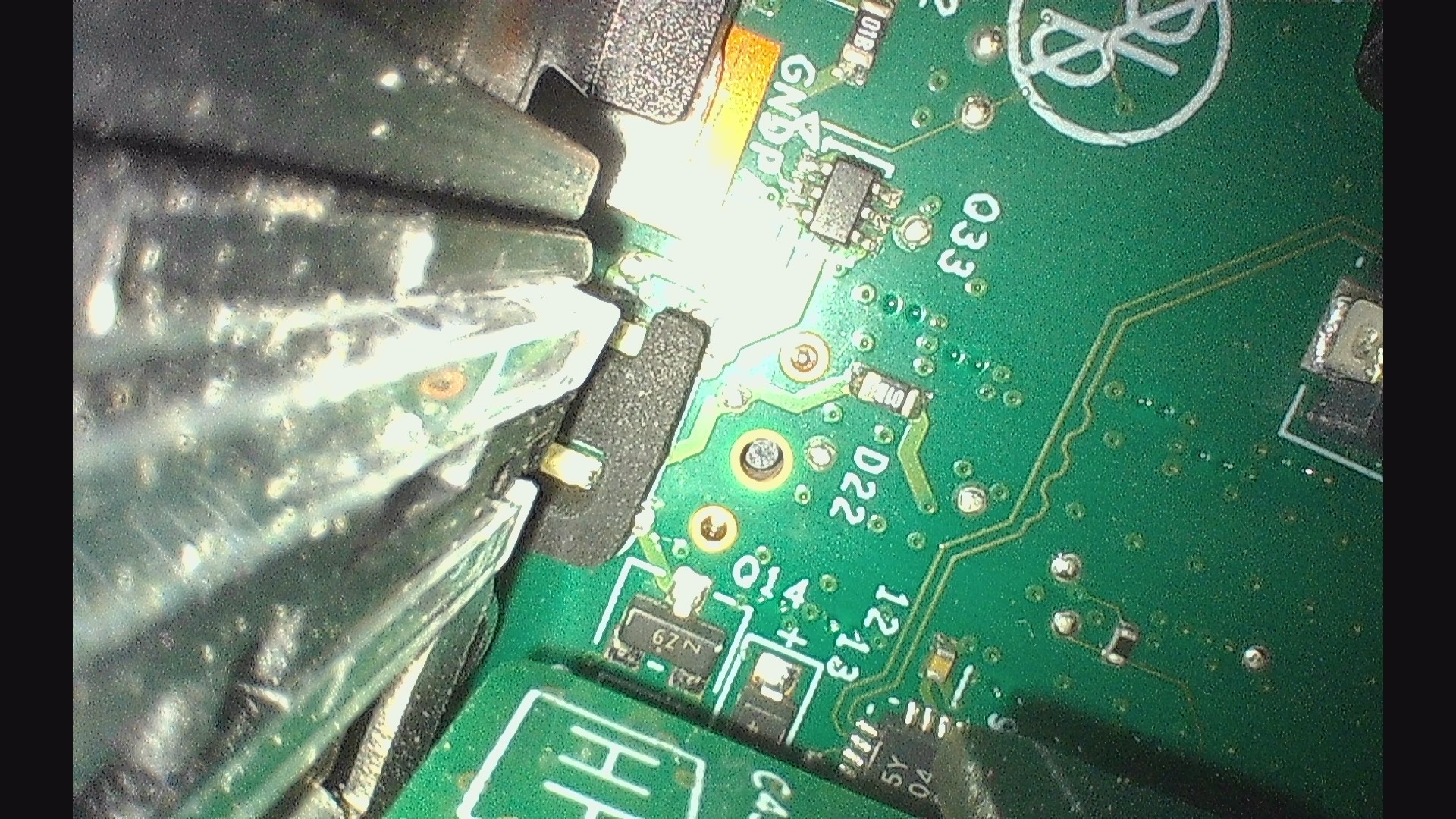

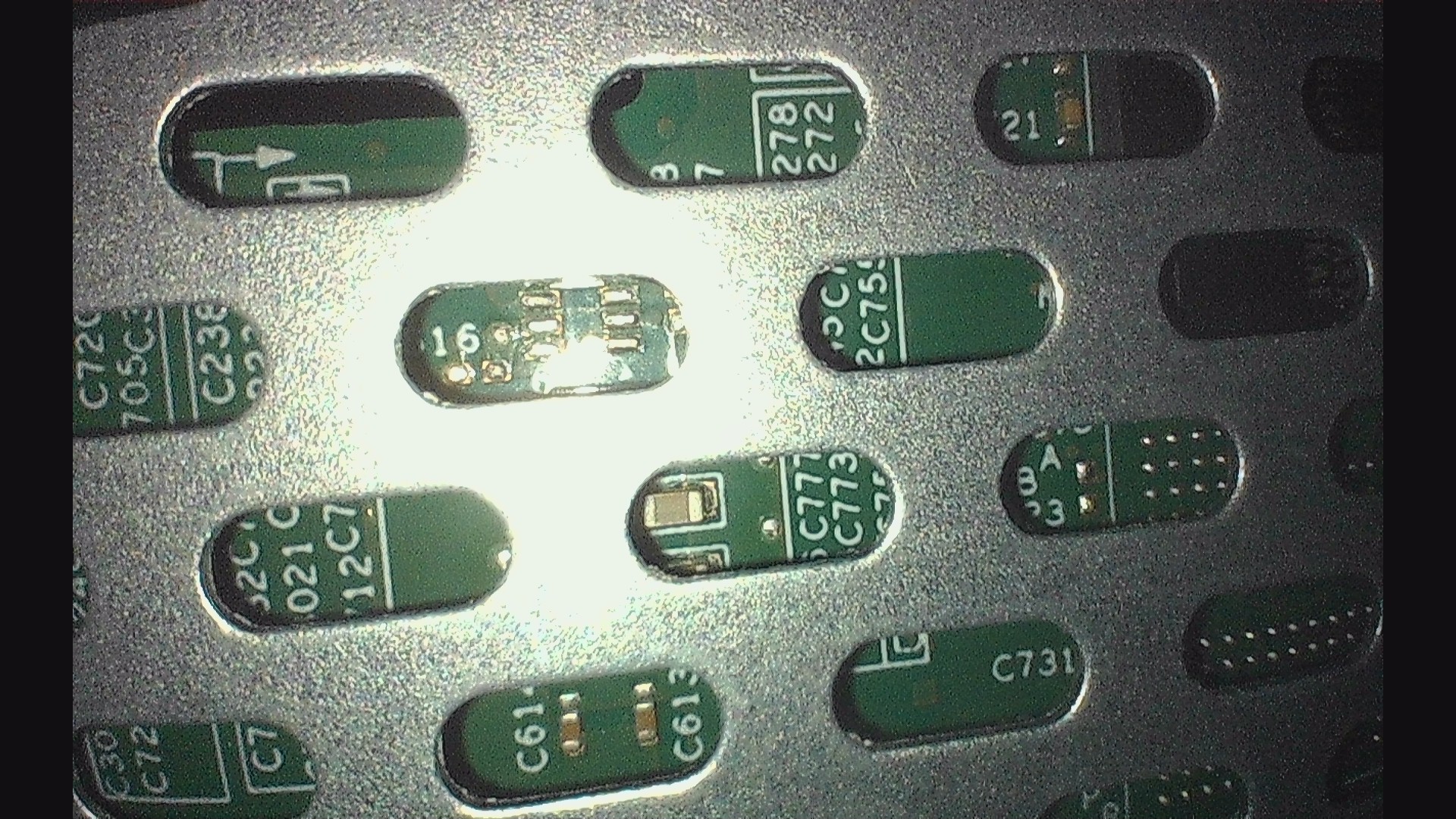

Introducing our latest advancement in videoscope technology: the USA3000J 3D Videoscope! This innovative unit features a Dual View measuring camera head. It is currently available in 3 meters working length. The system delivers exceptionally crisp, high-resolution images and videos at an impressive 2560×1440 resolution!

Equipped with a 7-inch touchscreen monitor, users can easily add notes or text directly on the screen, view previously captured photos and videos, adjust settings, and create 3D models of surfaces for straightforward crack identification and measurement. The videoscope also offers smooth joystick control for enhanced usability.

At present, the diameter of the videoscope is 6mm, with an interchangeable 4mm diameter option coming soon!

Features

• Dual View 3D Measuring
• Excellent Image Quality with Optimized Optic System & HD CMOS Sensor
• High Resolution Picture/Video LCM Output System
• Smooth Joystick Control and Lock System
• Tungsten Tube
• Temperature Warning
• 7″ HD Monitor
• Rigid Sleeve
• Available in 3m
• HD Borescope
• Interchangeable Probe Borescope
• Supports 6mm probes (and soon 4mm)

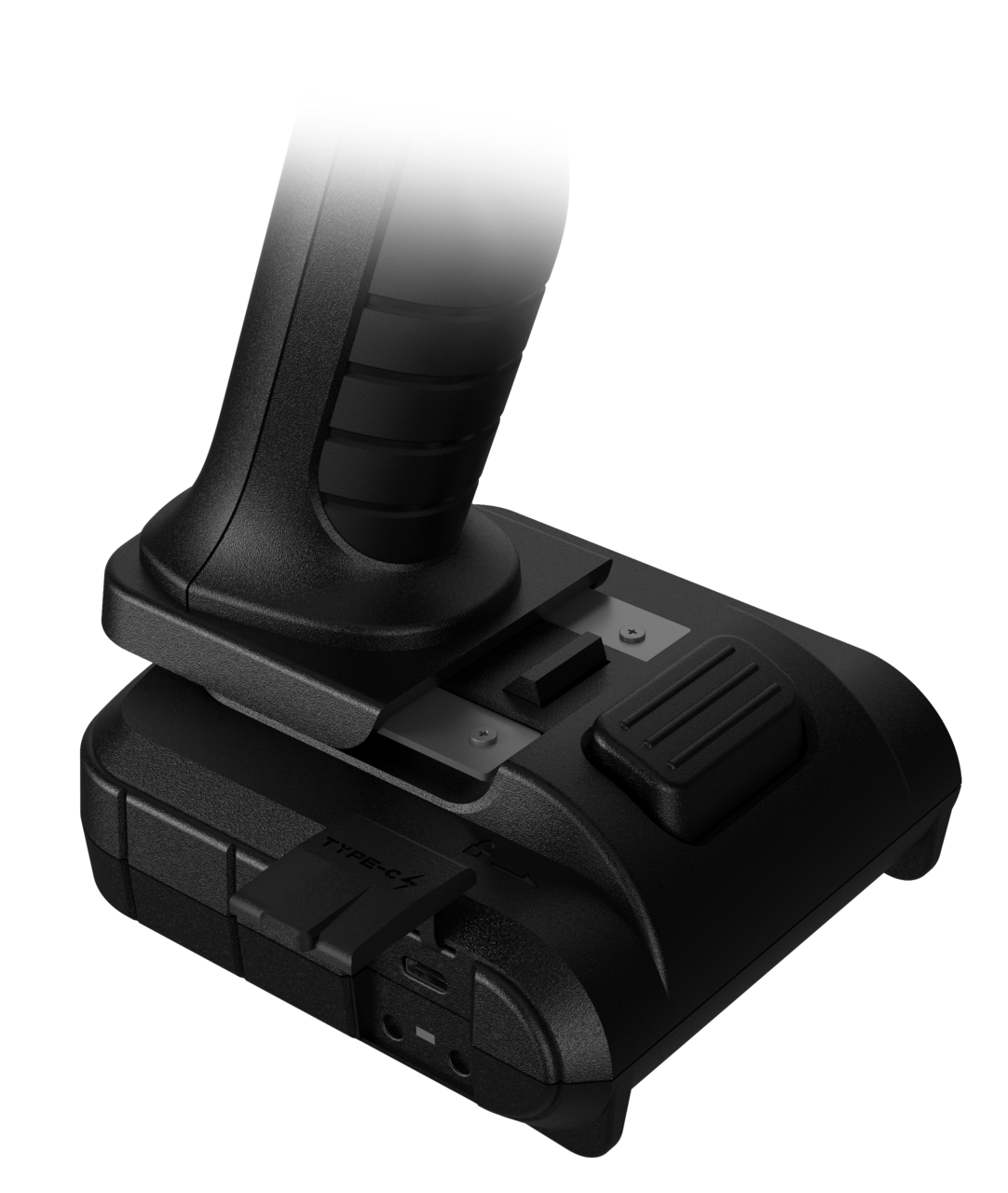

• Detachable Battery
• Field of View (FOV): 95°
• Depth of Field (DOF): 10mm~∞

Measuring Specification:

• Effective Range mm: 10~25
• Effective Area mm²: 130~830
• Measurement Error: 5%

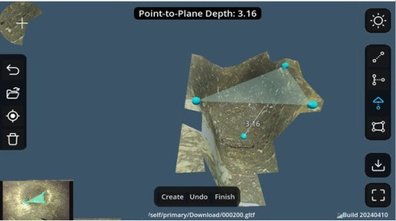

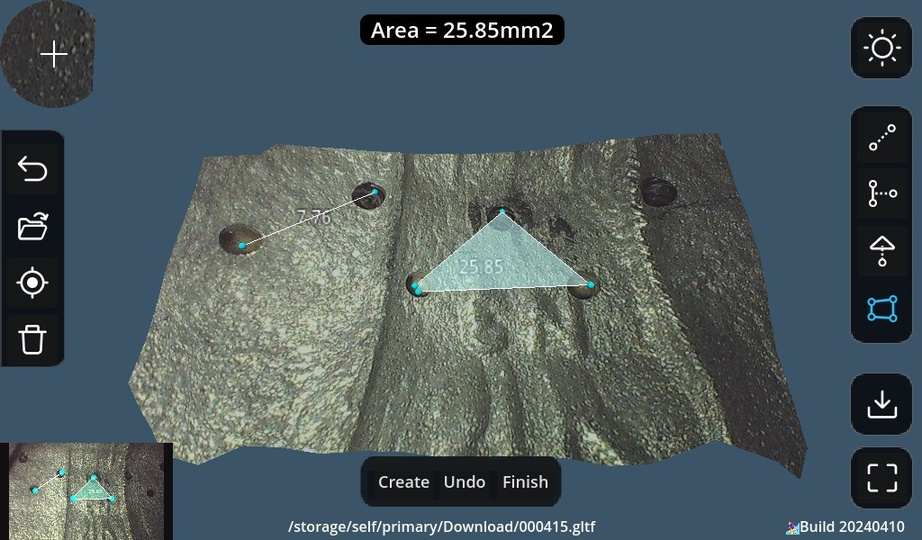

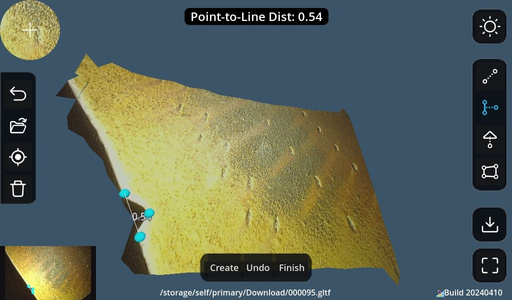

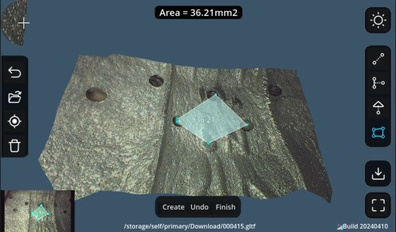

• Measurement Function: Point to Point | Point to Line | Point to Surface | Area
