Wohler – VIS 750 – 11755 – 1.5″ Pan/Tilt Pipe Camera – 200′ Length
PN: Wohler 11755
11755- VIS750
- Pan and tilt HD camera head with additional motorized focus
- Ready for immediate use: Set up, switch on and get started

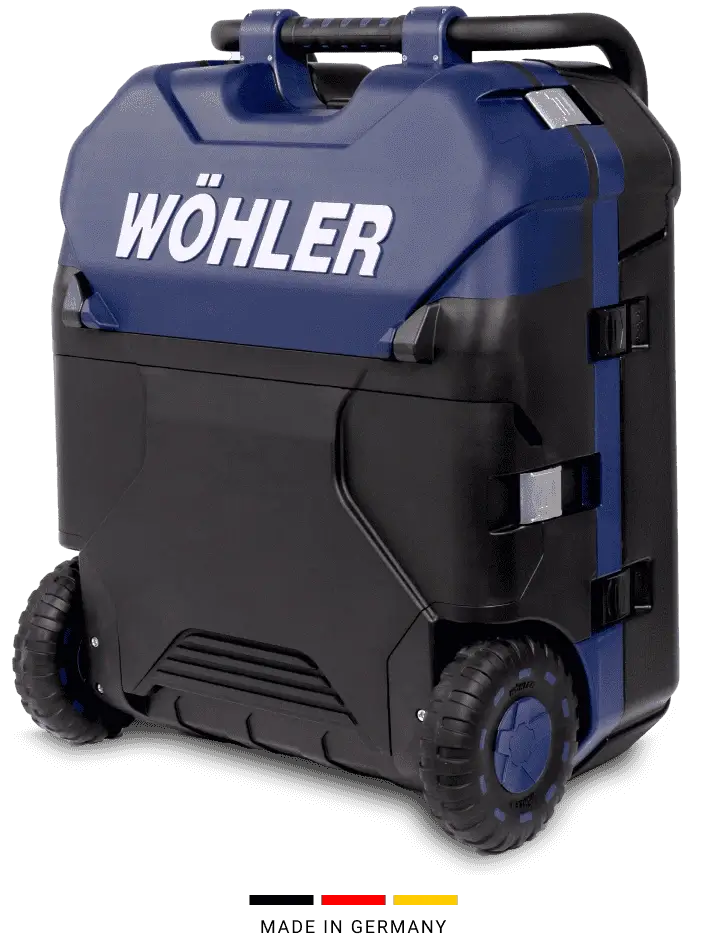

- The trolley leaves your working environment clean: Simply stow the camera push rod in the trolley after inspection
- Easy cleaning: Camera head and push rod only need to be wiped down and are ready for the next use

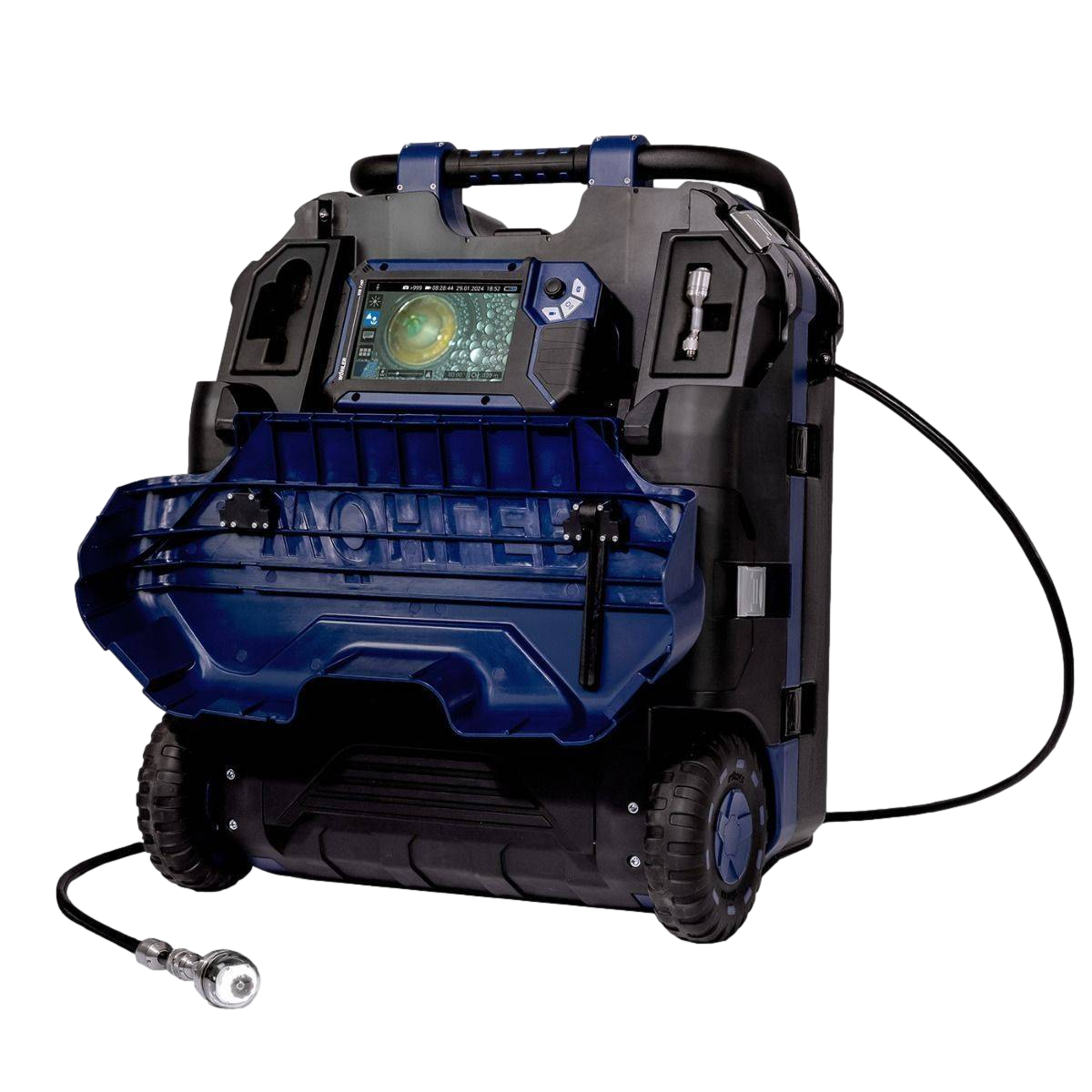

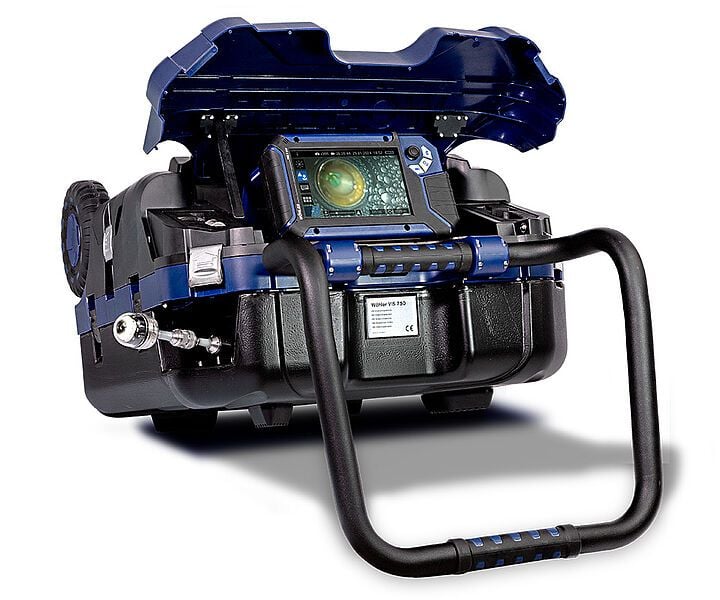

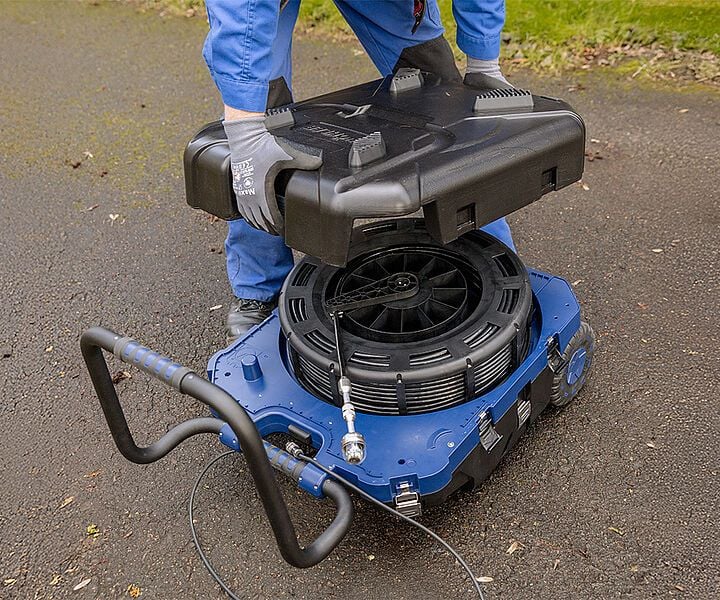

- The compact trolley contains everything you need for your inspection: The camera, monitor and reel have their fixed place. You can easily stow a second camera head or other other tools in the accessory compartment
The VIS 750 set mfg part number ( Wohler 11750 ) comes with:
- 7” TFT touchscreen color monitor
- Color camera head 1.5” pan and tilt
- 32 GB SD Card
- 200’ push rod 0.33×0.22 in diameter
- USB charger and cable
- Hard-shell plastic carrying case
- Full Manufacturer 1 year warranty
Specifications:
Monitor
Dimensions housing: 10 x 6 x 2 in
TFT display: 7″ / 16:9 format, 1280 x 800 px
Weight: 2 lbs.
Power supply: USB C 5 V / 3 A
Power supply: 3.7 V, 11.4 Ah rechargeable Li-Ion battery
Battery operating time: 4 h (battery status in display)
Operating temperature: 32 – 104 °F
Storage temperature: -4 – 122 °F
Wöhler pan & tilt camera head 1.5 inch
Type: 1/2.7″ Color CMOS
IP rating: IP 67
Viewing angle, diagonal: 160°
Focus distance: 1 inch – ∞
Light source: 10 white LEDs
Protection: Waterproof to IP 67 (up to 40 ft. depth for 30 mins.)
Dimensions: 1.5 x 2.5 inches
Transmit frequency of Locator: variable
Camera rod
Length: 200 ft.
Diameter: 33“ x .22“
Electronic meter counter
Resolution: 1 inch
Max. deviation: 5% of reading
Memory
Max. capacity of SD card: 32 GB
Technology: SD or SDHC, speed class 10
Recording capacity: Approx. 3 GB/h
Resolution recording: 1280 x 720 HD, max. 25 fps
Recording format: AVI (H264)
Additional information
| Weight | 25 lbs |
|---|
