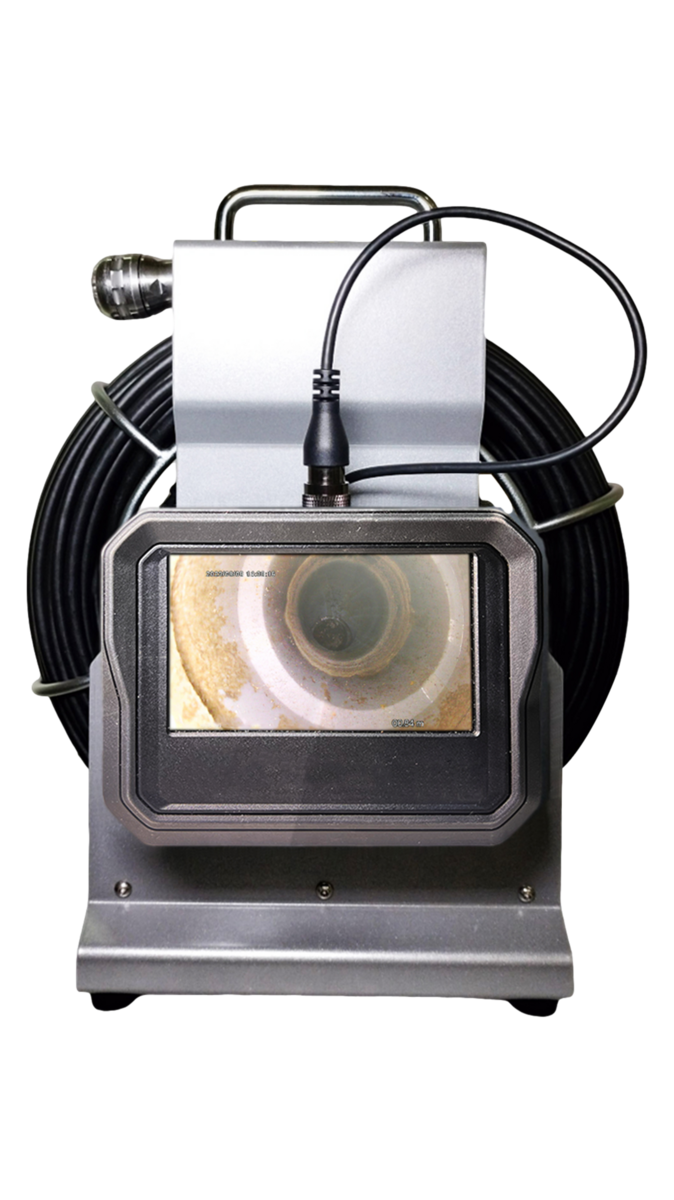

USAPRSL300T – 1.1″ Pipe Camera – 100′ Length – Self Leveling

USAPRSL300T Pipe Inspection System

28.8mm Diameter, 30m Length

FEATURES:

• 5″ Full-touch-screen monitor
• On-screen meter & Inclinometer
• 28.8 mm Self-leveling  push camera
• 12 LEDs illumination
• Wi-Fi control
• Built-in 512 Hz sonde transmitter
• Portable light weight
• IP 54 base unit & IP67 camera protection

Additional Information

• Storage: Micro SD up to 64GB
• Image and Video Resolution: 1920x1080px
• FOV: 150˚
• DOF: 20mm~∞
• Sonde transmitter: 512Hz
• Camera head lighting: Front LED
• Camera head diameter/length: 28.8mm
• Camera head material: Stainless steel
• Operating temperature: -10ºC ~ 50ºC
• Storage temperature: -10ºC ~ 60ºC
• Display resolution: 800x480px
• Reel diameter: 300mm
• Reel waterproof: IP68
• Probe head diameter: 28.8mm
• Probe length: 30m
