The aviation industry depends on precision and uptime. Downtime costs money. Missed issues cost lives. And with tight spaces and limited visibility inside engines, a standard visual inspection just doesn’t cut it. With the right aviation borescope, you can see exactly what’s happening inside the engine — no guesswork required.
When you’re shopping for the best borescope for aircraft engines, a few things matter most: image clarity, articulation control, probe diameter, portability, and the ability to record and measure what you see. One key consideration is the diameter of the probe. Choosing between a 4mm vs. 6mm borescope can significantly affect your ability to navigate tight spaces or reach deeper components in large engines.
Whether you’re performing routine inspections or investigating anomalies during aircraft engine teardown, you need the right tool for the job. Let’s take a closer look at the top borescopes for aviation maintenance, each carefully selected to help you make faster, more accurate decisions.

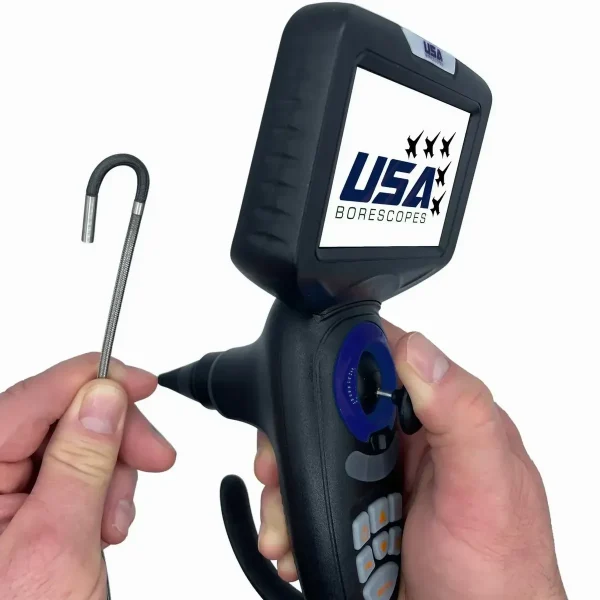

USAVSJ-4-1500 Joystick Articulation 4mm Videoscope (1.5m Length)
If you’re looking for a compact, no-nonsense tool that delivers sharp visuals and smooth articulation, the USAVSJ-4-1500 is a great place to start. With a slim 4mm probe and a 1.5-meter working length, it’s ideal for inspecting tight engine cavities without compromising image quality.
The joystick articulation borescope feature gives you precise control in four directions, helping you navigate around turbine blades and combustion chambers with ease. It’s lightweight and portable and comes with a built-in LCD screen, so there’s no need for extra gear on the tarmac or in the hangar.
Key Features:
- 4-way joystick articulation for precision maneuvering
- 4mm diameter insertion probe
- 1.5-meter (59-inch) working length
- High-resolution camera with integrated LED lighting
- Built-in LCD monitor for real-time viewing
- USB/SD card support for image and video capture
- Battery with up to 4 hours of operation
- Lightweight, portable design for field use
Best For:
Tight-space inspections in aircraft engines where access is limited, such as high-pressure turbine areas, nozzle guide vanes, and small bore access ports. Ideal for technicians who need a compact, all-in-one aircraft engine inspection borescope with reliable performance and portability.

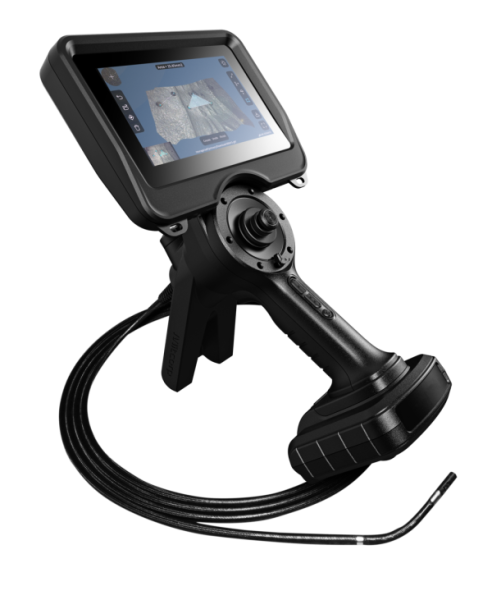

USA3000J-6 Joystick Articulation 6mm Dual-View 3D Measuring Videoscope
Complex engines demand advanced tools — and the USA3000J-6 fits that need perfectly. This high-performance dual-view borescope for engines delivers straight and side views (0° and 90°), giving you a complete visual profile without re-inserting the probe.
Its 3D measurement capabilities let you size cracks and assess damage with software-enabled precision. This powerful aircraft engine video scope supports accurate decision-making in maintenance and diagnostics.
Key Features:
- Dual camera views: 0° (forward) and 90° (side)
- 3D measurement with onboard sizing and profiling tools
- Joystick articulation in all directions
- 6mm diameter insertion probe
- Interchangeable lengths (1.5m, 2m, 3m) 4mm available soon
- High-resolution touchscreen monitor
- Image comparison, measurement, and video capture
- USB and SD card storage compatibility
Best For:
This aircraft engine inspection borescope is best for advanced diagnostics in turbine engines and APUs, where accurate sizing and full-angle visualization are critical. It is also the best borescope for aviation maintenance teams that need both high-end visuals and measurement functionality during maintenance and overhaul procedures.

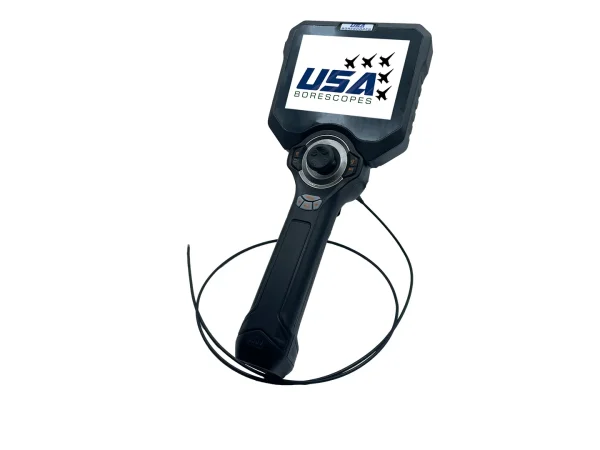

SRV-J-4-1500 Joystick Articulation 4mm Videoscope (1.5m Length)
Designed with aircraft turbine access in mind, the SRV-J-4-1500 delivers excellent mobility and clear visuals in a lightweight format. Its 4mm probe and built-in screen make it ideal for inspections where space is limited and speed matters. This model is a solid choice for technicians who value fast deployment and minimal setup, especially during AOG (Aircraft on Ground) situations when every second counts.
Key Features:
- 4mm diameter insertion probe
- 1.5-meter working length
- 4-way joystick articulation
- Integrated high-resolution display
- Still image and video capture
- USB output for file transfer
- Rechargeable battery
- Lightweight, handheld design
Best For:
On-the-go inspections where portability and speed matter. A great fit for technicians working on regional jet engines or smaller turboprops who need a lightweight aircraft engine videoscope with professional-grade performance.
USA2000J-4-1500DV Portable Joystick Articulating Videoscope
The USA2000J-4-1500DV delivers dual-camera viewing in a 4mm probe, making it one of the most versatile tools in its class. With both forward and side views, you get full coverage without having to reposition inside the engine. That’s a significant efficiency win when you’re working within the tight timeframes of scheduled line maintenance or post-flight checks.
Key Features:
- Dual camera views (forward and side)
- 4mm diameter probe
- 1.5-meter working length
- Joystick articulation for precise movement
- Photo and video capture
- SD card storage
- Integrated LCD screen
- Available in 1.5m and 3-meter lengths
Best For:
Quick-turn inspections in engines with complex internal geometries. Perfect for aviation professionals needing fast, reliable access to both forward and lateral views without removing the probe. A solid candidate for the best borescope for aircraft engines in commercial operations.

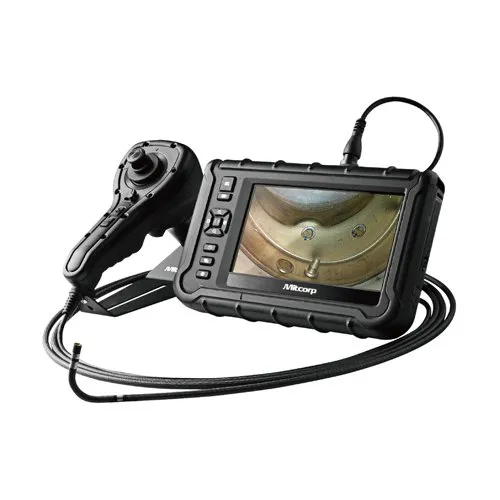

USA2000J-6-3000 6mm Portable Joystick Articulating Videoscope
The USA2000J-6-3000 is built for deep engine access, offering a 3-meter working length and sharp video output. It’s rugged, responsive, and ready for demanding inspection jobs requiring the aid of an aircraft engine inspection borescope, especially when inspecting long ducts, exhaust manifolds, or inaccessible internal engine components.
This model excels in maintenance settings where longer probes are necessary to reach trouble areas that shorter units simply can’t access. Despite its extended length, the joystick articulation remains smooth and reliable, giving technicians complete control throughout the inspection.
Key Features:
- 6mm diameter probe
- 3-meter (9.8-foot) insertion length
- 4-way joystick articulation
- High-resolution display monitor
- Video and image capture
- Rechargeable battery
- Portable, durable design
- Also available in 2m, 3m, 5m, 7m, and 10m lengths
Best For:
Deep engine inspections where extended reach is critical, such as wide-body jet turbines, auxiliary power units, and inaccessible ducting. This is a go-to aviation borescope camera for maintenance crews working with large commercial fleets or defense aircraft.
USA2000J-6-2000 6mm Portable Joystick Articulating Videoscope
Striking a balance between reach and portability, the USA2000J-6-2000 gives you two meters of access and full joystick articulation, making it ideal for a wide range of aircraft engine maintenance tools needs. It’s especially valuable for MRO operations handling mixed fleets, where flexibility is key.
This aircraft engine videoscope provides clear, high-resolution visuals supported by powerful LED lighting to illuminate dark internal components. Whether you’re assessing carbon buildup in combustion chambers or inspecting stator vanes for erosion, this aircraft engine videoscope helps you identify and document issues quickly. Its ergonomic design and battery-powered operation make it equally at home in a hangar or on the tarmac.
Key Features:
-
- 6mm diameter probe
- 2-meter (6.6-foot) working length
- 4-way joystick articulation
- Bright integrated LED lighting
- Built-in handheld monitor
- Image and video recording
- Rechargeable, field-ready battery
- Ergonomic, portable form
- New Product: 6mm and 4mm Diameter Probe Borescope
Best For:
Technicians who need a flexible aviation borescope for mid-sized and deeper engine inspections. It is also ideal for mixed fleet operators looking for the best borescope for aviation maintenance with the right blend of portability and access.
Find the Best Borescopes for Every Application
No two inspections are alike. Whether you’re focused on military jets, commercial airlines, or private aircraft, choosing the best borescope for aviation means finding a solution that fits your specific needs, whether it’s probe size, articulation, measurement capabilities, or more.
At USA Borescopes, we specialize in high-performance inspection tools that support every level of aviation, from routine checks to advanced aerospace borescope inspection work. Our team understands that every second counts when it comes to aircraft maintenance, and we’re here to provide the equipment that gets the job done right.
Are you looking for a trusted borescope for aviation maintenance equipment? Do you need help comparing aircraft engine maintenance tools or figuring out which engine borescope camera best fits your workflow?
We’re ready to help. Contact USA Borescopes today to request a quote!
